ZK-660FBS Fully Automatic Rigid Box Making Machine

High efficiency and precise positioning are your basic requirements for boxes1. Equipped with visual positioning system, position error:±0.05.2. High production efficiency, more stable operation, durable and low noise.3. Satisfying the high-end and non-mark boxes requirement.InstructionRigid box ma


Box Case

High efficiency and precise positioning are your basic requirements for boxes

1. Equipped with visual positioning system, position error:±0.05.

2. High production efficiency, more stable operation, durable and low noise.

3. Satisfying the high-end and non-mark boxes requirement.


Instruction

Rigid box making machine ZK-660FBS using motion controller system,visual manipulator system and touch screen man machine interface system.which achieve automatic paper feeding gluing,cardboard four corner taping ,position,feeding,edge covering ,full ear folding,Can be folded in multiple times at the forming position and automatic shaping of finished box whole operations are full automatic.the production speed can reach 30 pcs/min.

It is applicable to the production of high-end rigid boxes, such as business package boxes for electronic products, mobile phone boxes, jewelry boxes, gift boxes, cosmetics boxes, watch box and so on.


Specification



Note:

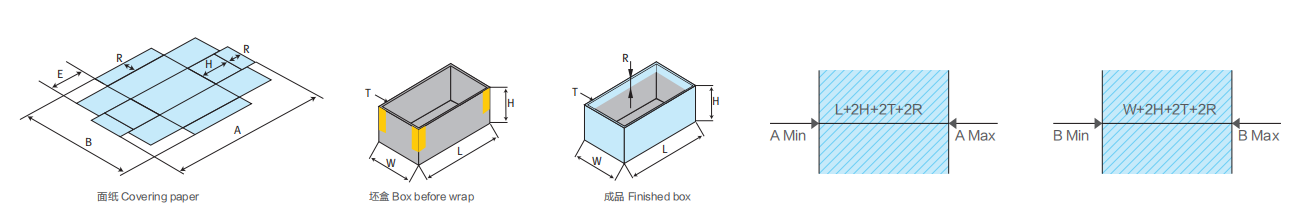

1.The size of the box is restricted by the size of the cover paper;

2.Online Viscometer system(optional)

3.The company does not provide air compressors;

4.Several factors that affect the speed of the machine: raw materials, glue and operator proficiency;

5.Due to continuous innovation in product design, the above data is for reference only; and are subject to change without notice.

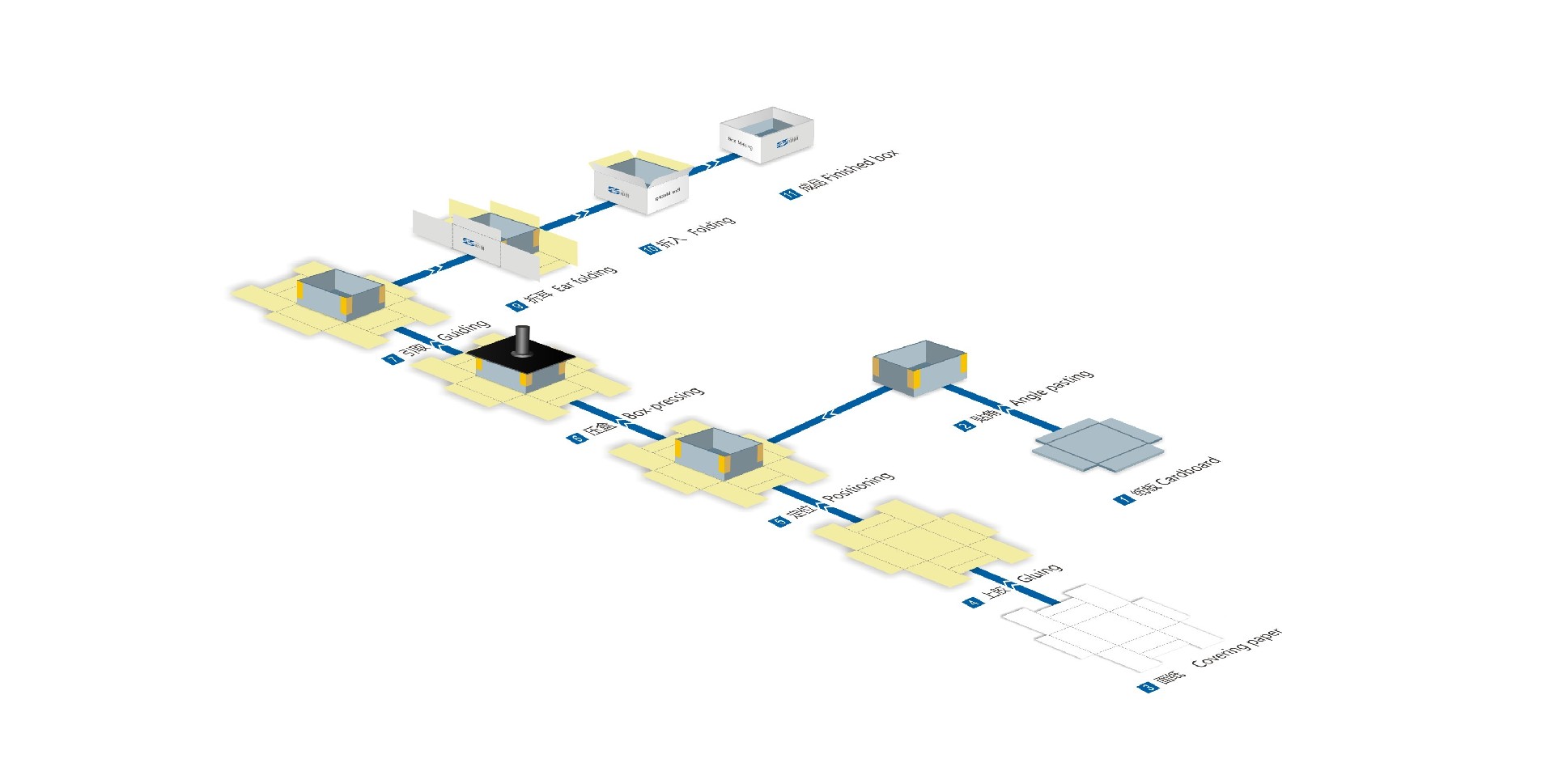

Production process



The feeding part of the feeder adopts suction nozzles, suitable for light and irregular cover paper. The machine is equipped with a double-sheet detection device to prevent multiple sheets transmission of paper at one time.



  1. Black and white conveyor belt identify different colors of cover paper, positioning accurate.

  2. Glue knife avoiding cover paper moving after gluing.



Sensor for emergency door, once door opened, machine will stop working. It ensures the safety of operators.

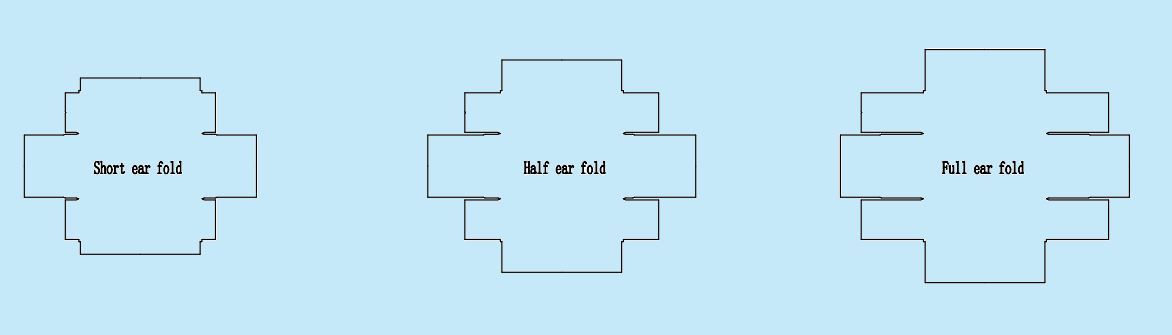

This machine with a flexible forming design is suitable for different shapes and sizes boxes in the market. For example, if now making a high box but narrow width, 4-times forming, side by side would make box more beautiful. Meanwhile, when making different sizes of boxes, there are adjustable pages on computer program that can be set up accordingly.



Forming part is driven by double servo motors, working stable and fast.

Old machine mould changed manually, after years of improvement, ZK-660FBS forming moulds controlled by remote controller. Operators can change sizes quicker and safer.



The sensor on guiding the way, once semi-finished box gets hit during guiding process, the machine alarm would be triggered and avoid affecting the operation of next steps.
