Rigid Box Making Machine

ZK-660FC Fully Automatic Box Folding Machine

Have been there since the beginning1.Equipped with servo position system2.Meet the needs of different materials3.Can be used to produce cosmetic boxes, shoe boxes, shirt boxes, gift boxes, food boxes, etc.InstructionRigid box making machine ZK-660FC adopts servo control system, programmable motion c


Box Case

Have been there since the beginning

1.Equipped with servo position system

2.Meet the needs of different materials

3.Can be used to produce cosmetic boxes, shoe boxes, shirt boxes, gift boxes, food boxes, etc.


Instruction

Rigid box making machine ZK-660FC adopts servo control system, programmable motion control program control system, photoelectric servo positioning system, and man-machine interface control system. The forming part uses a combination of servo drive and mechanical cam, which has high production efficiency, more stable operation, more durable and in low noise. It realizes the characteristics of automatic paper feeding, gluing, positioning and wrapping, full-folding ear and folding-in forming action at one time, satisfying the high-end boxes requirements. the production speed can reach 35 pcs/min.


Application

It is applicable to the production of high-end rigid boxes, such as business package boxes for electronic products, mobile phone boxes, jewelry boxes, gift boxes, cosmetics boxes, watch box and so on.


Specification


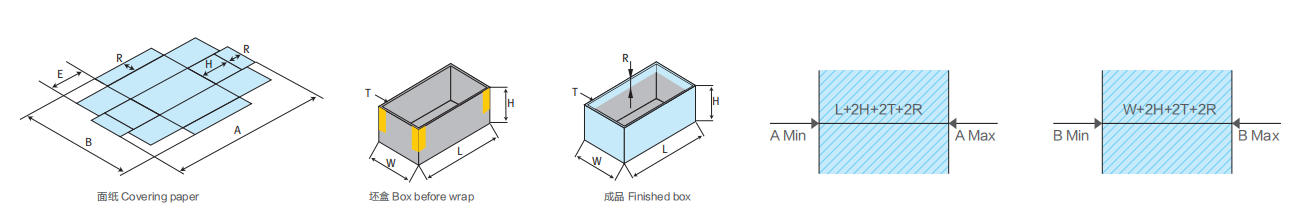

Cover paper size
A190-660mm
Rated power:36.9kW / 2200rpm
Standard bucket capacity:0.2m3
Standard bucket width:775mm
Operation Hydraulic Pressure:24.5Mpa
Maximum Digging Force:37.4kN
Gradeadility:30°
Pressure To The Ground:31.4kPa
Walking Speed:2.8/4.7 km/h
Maximum Hauling Force:44kN
Swing Speed Of Platform:10.4 rpm



Note:

1.The size of the box is restricted by the size of the cover paper;

2.Online Viscometer system(optional)

3.The company does not provide air compressors;

4.Several factors that affect the speed of the machine: raw materials, glue and operator proficiency;

5.Due to continuous innovation in product design, the above data is for reference only; and are subject to change without notice.

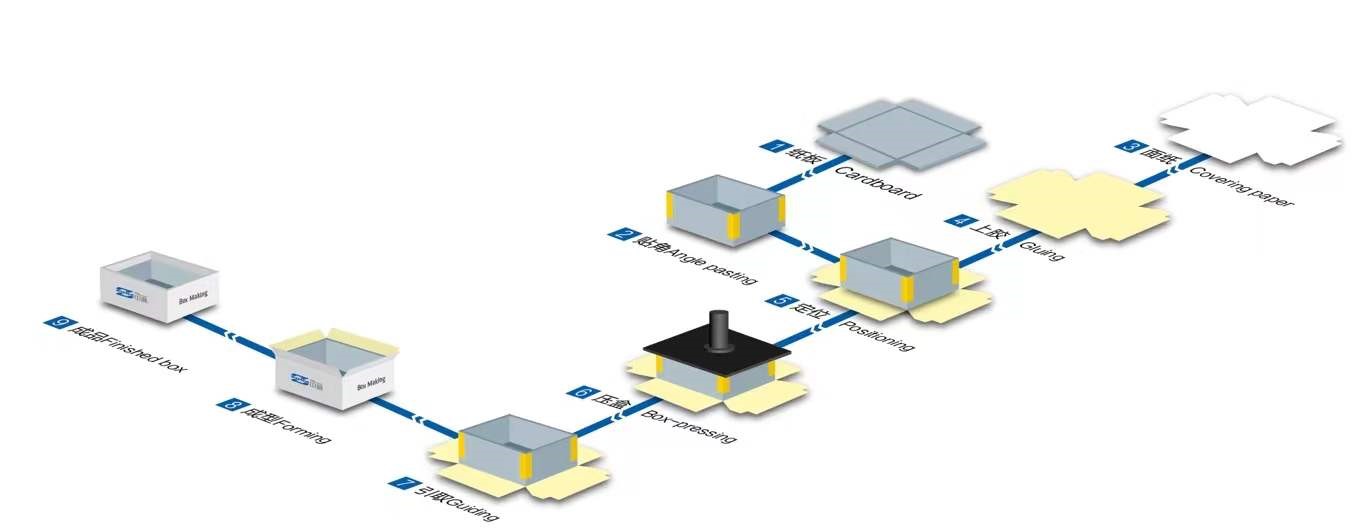

Production Process:






The feeding part of the feeder adopts suction nozzles, suitable for light and irregular cover paper. The machine is equipped with a double-sheet detection device to prevent multiple sheets transmission of paper at one time.



Black and white conveyor belt identify different colors of cover paper, positioning accurate.

Glue knife avoiding cover paper moving after gluing.



Sensor for emergency door, once door opened, machine will stop working. It ensures the safety of operators.



The machine adopts photoelectric positioning and servo control system, making precision error +-0.3mm.

Old machine mould changed manually, after years of improvement, ZK-660FC forming moulds controlled by remote controller. Operators can change sizes quicker and safer.



The sensor on guiding the way, once semi-finished box gets hit during guiding process, the machine alarm would be triggered and avoid affecting the operation of next steps.
