ZK-660FCS Fully Automatic Rigid Box Making Machine

High efficiency and precise positioning are your basic requirements for boxes1. Equipped with visual positioning system, position error:±0.05.2. High production efficiency, more stable operation, durable and low noise.3. Satisfying the high-end and non-mark boxes requirement.InstructionRigid box ma


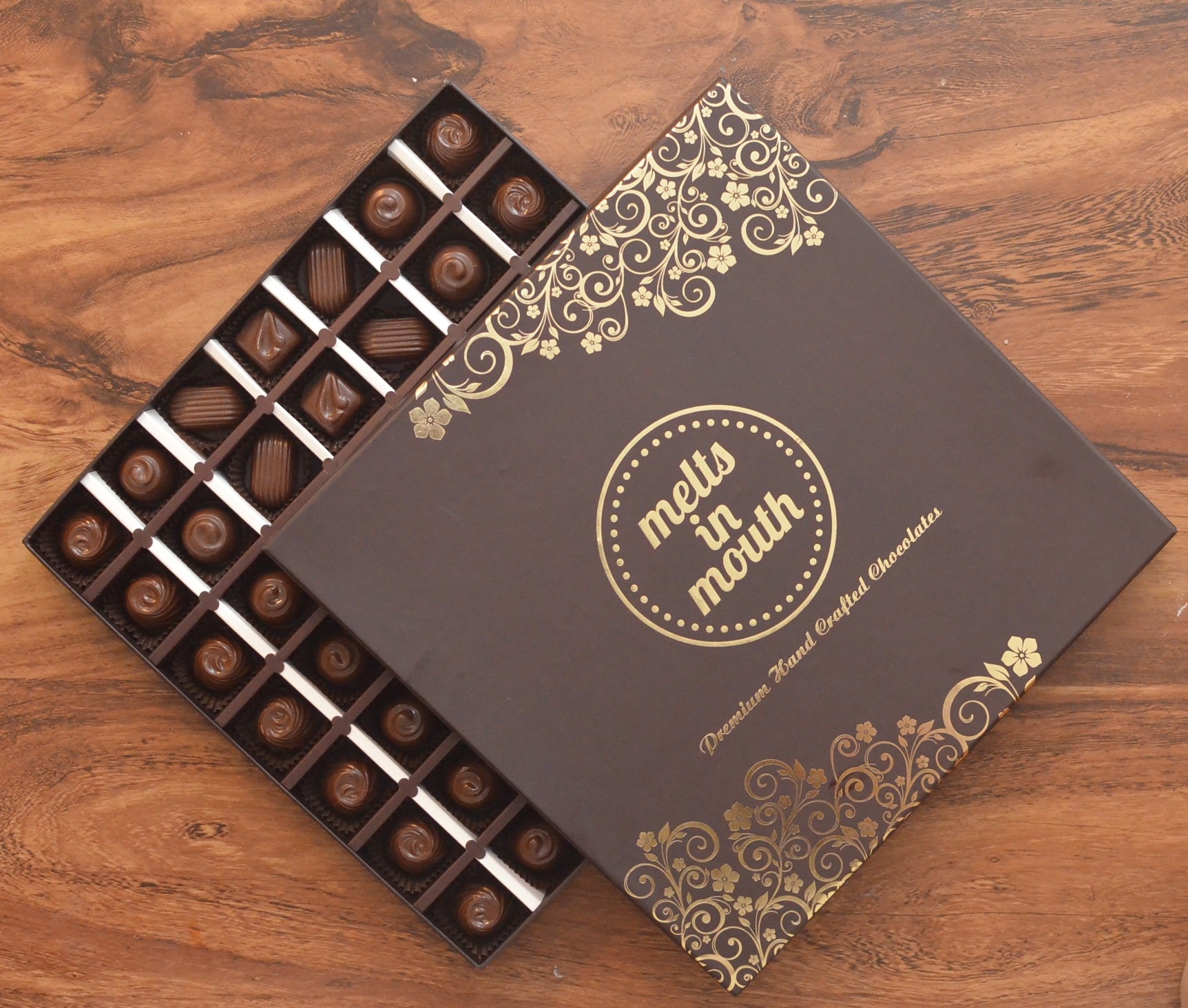

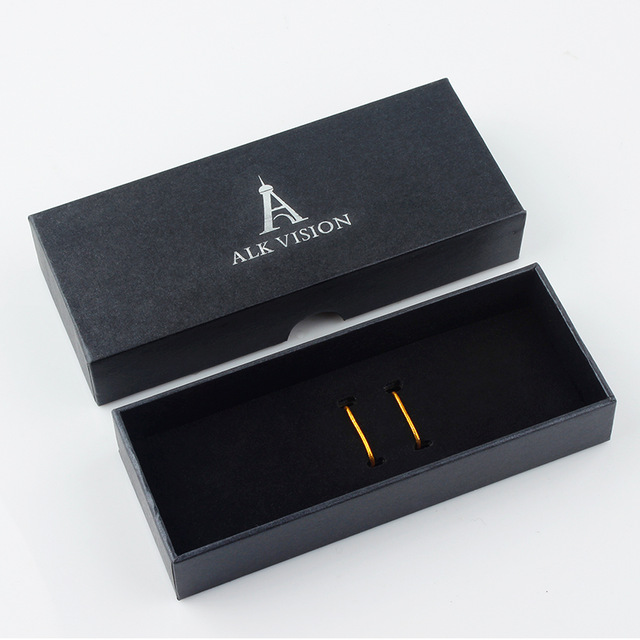

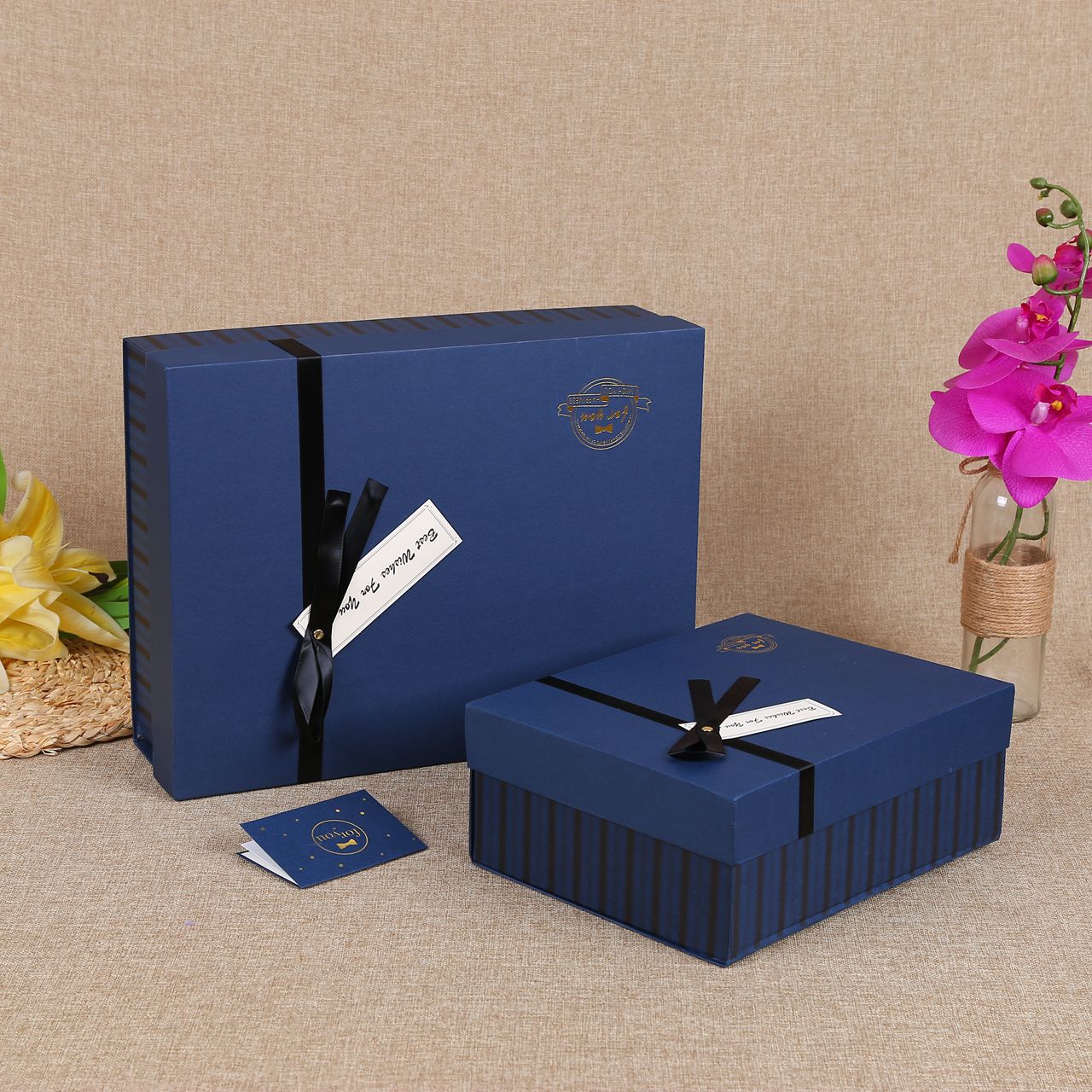

Box Case

High efficiency and precise positioning are your basic requirements for boxes

1. Equipped with visual positioning system, position error:±0.05.

2. High production efficiency, more stable operation, durable and low noise.

3. Satisfying the high-end and non-mark boxes requirement.


Instruction

Rigid box making machine ZK-660FCS  adopts servo control system, programmable motion controller system, high pixel vision + robot positioning system, and man-machine interface control system. The forming part uses a combination of servo drive and mechanical cam, which has high production efficiency, more stable operation, more durable and in low noise, realize the characteristics of automatic paper feeding, gluing, positioning and wrapping, full-folding ear and folding-in forming action at one time, satisfying the high-end and non-mark boxes requirements..the production speed can reach 35pcs/min.

It is applicable to the production of high-end rigid boxes, such as business package boxes for electronic products, mobile phone boxes, jewelry boxes, gift boxes, cosmetics boxes, watch box and so on.


Specification



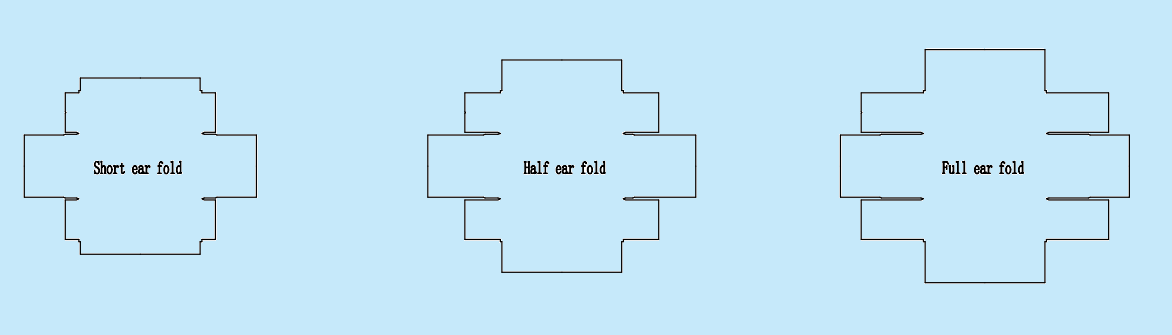

Note:

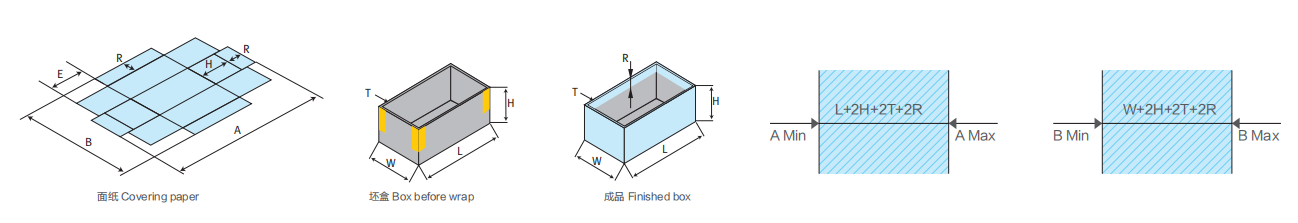

1.The size of the box is restricted by the size of the cover paper;

2.Online Viscometer system(optional)

3.The company does not provide air compressors;

4.Several factors that affect the speed of the machine: raw materials, glue and operator proficiency;

5.Due to continuous innovation in product design, the above data is for reference only; and are subject to change without notice.

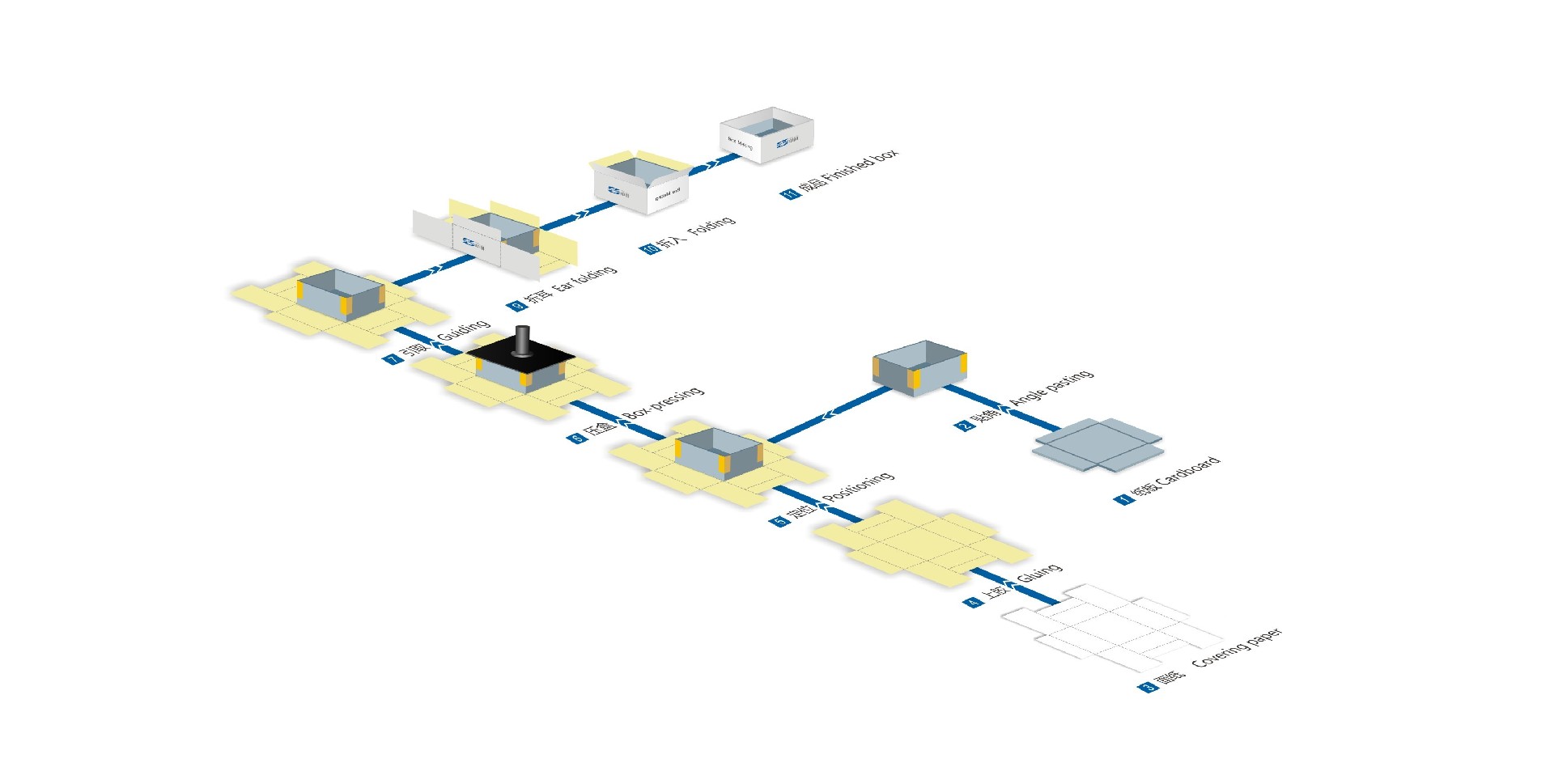

Production process



The feeding part of the feeder adopts suction nozzles, suitable for light and irregular cover paper. The machine is equipped with a double-sheet detection device to prevent multiple sheets transmission of paper at one time.



Black and white conveyor belt identify different colors of cover paper, positioning accurate.

Glue knife avoiding cover paper moving after gluing.



Machine adopts visual positioning, working with manipulator, precision error +-0.05mm.



Sensor for emergency door, once door opened, machine will stop working. It ensures the safety of operators.



Old machine mould changed manually, after years of improvement, ZK-660FCS forming moulds controlled by remote controller. Operators can change sizes quicker and safer.



The sensor on guiding the way, once semi-finished box gets hit during guiding process, the machine alarm would be triggered and avoid affecting the operation of next steps.
